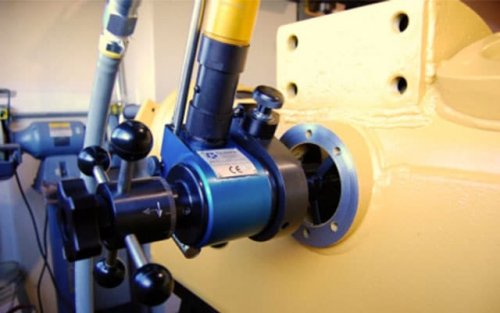

FF3000 FLANGE FACER

One of the most compact and versatile tools of its kind. With its modular design, tool-less set up and a bi-directional, infinitely variable feed, it faces and bevels with remarkable speed and precision. Facing diameters range from 1.5 to 12 inches (38.1 to 304.8 mm).

Product Specifications

Facing Diameter:
1.5 – 12 inches (38.1 – 304.8 mm)

Milling Diameter:
N/A

ID Mounting Diameter:
1.5 – 6.75 inches (38.1 – 171.5 mm)

OD Mounting Diameter:
N/A

Power Option:
Pneumatic

Product Advantages

Compact and Versatile

Patented, low profile machine is one of the most compact on the market today.

Lightweight, weighing only 35 lbs (15.9 kg).

Machine raised and flat flanges.

Bi-directional feed.

Optional beveling head connects with “Quick-Lock” system, making changeover quick & easy.

Quality Components

Pneumatic motor comes complete with filter, lubricator and flow control.

Compact, low-profile drive system engineered for superior power to weight ratio.

Features rugged main body, heavy-duty bearings, sealed lubrication, and rigid mounting system.

Cost Effective

Cuts costs in four ways:
– Reduces downtime
– Eliminates off-site machining costs
– Eliminates leak sealing procedures
– Reduces stock of replacement flange

Recoup the cost of a CLIMAX Flange Facer in the first few flange facing jobs.
